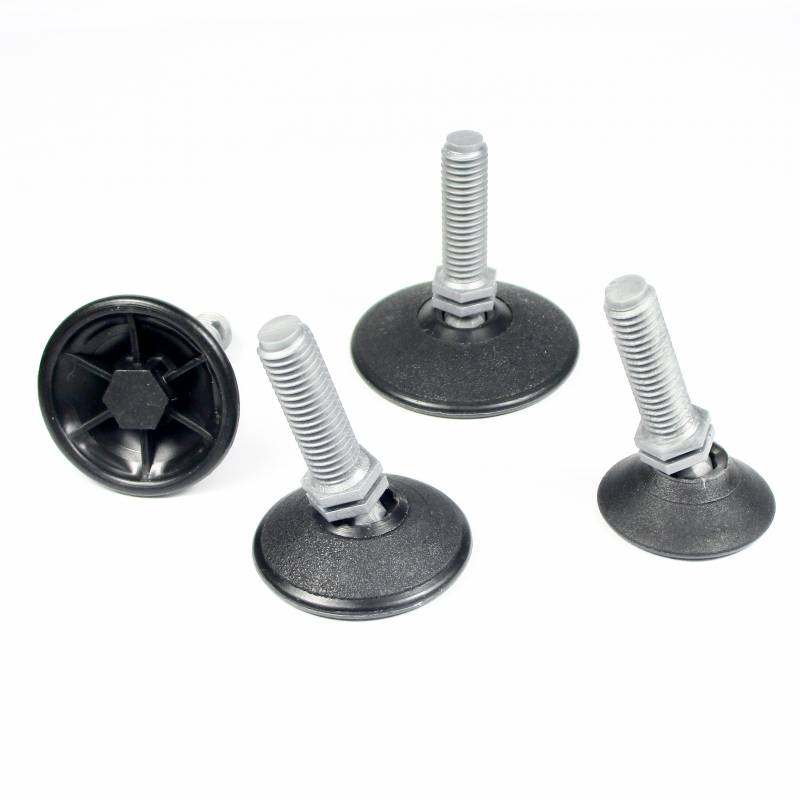

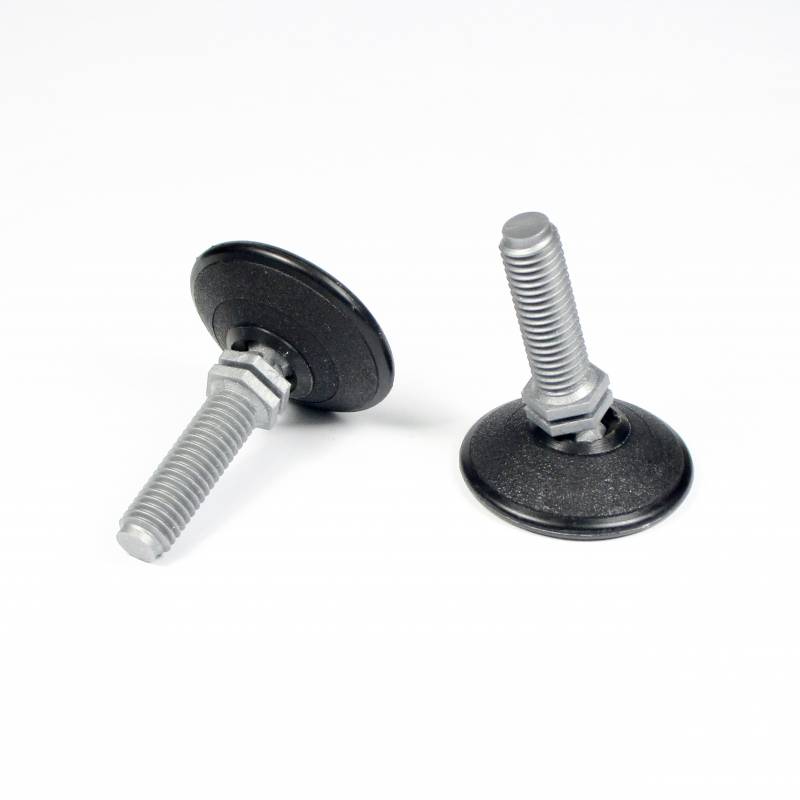

M10 Plastic Adjustable Ball and Socket Foot with 40 mm Base
The heavy duty threaded foot with ball joint can support up to 150 Kg per foot.

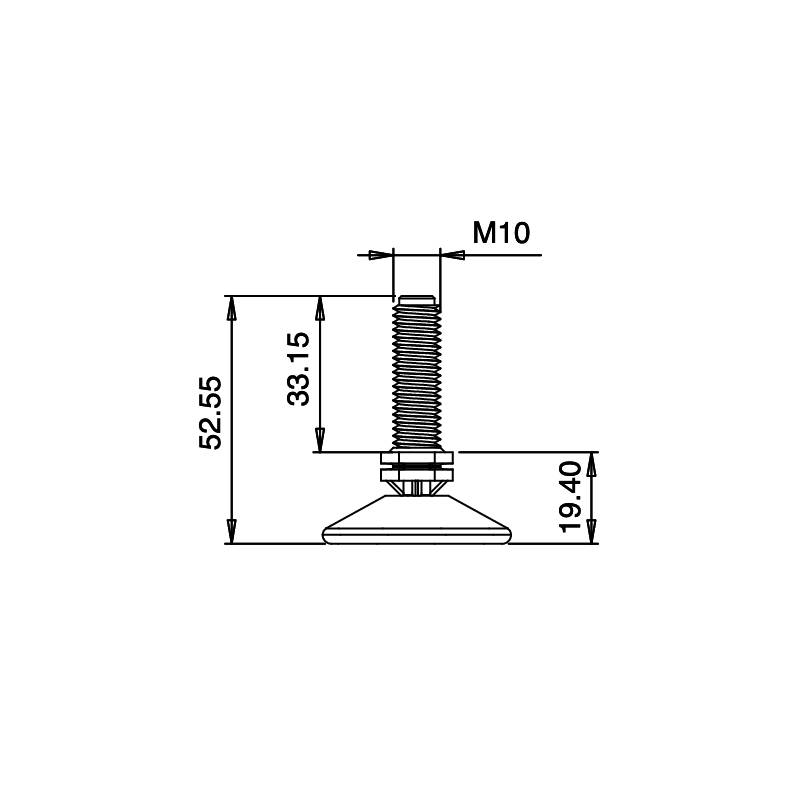

It has a 33 mm long threaded M10 stem made from Polyamide (PA6.6).
The 40 mm diameter base is made entirely of high density polyethylene (HDPE). It is lightweight and completely rustproof ; withstands corrosive environments and chemical agents. The ball joint compensates for uneven surfaces or other irregularities.
It includes a 13 mm hex nut tightening mechanism.
This leveling mechanical foot allows equipment, tables and furniture to be leveled while isolating them mechanically and electrically from the floor.
It is essential in harsh or difficult environments such as the food, chemical and pharmaceutical industries as well as in salty and marine environments.
M10 Plastic Adjustable Ball and Socket Foot with 40 mm Base
The M10 Ajile Adjustable Plastic Threaded Foot with Base Diameter 40 mm, PRP140 is part of Ajile's wide range of adjustable feet : Cylindrical Feet, Hex Head Feet, Knurled Head Feet, Monobloc Adjustable Feet as well as Felt based Feet with adhesive or insertable base.
These components are commonly used in home furnishings and equipment, but also in vehicles, boats, electrical and electronic equipment and many other applications.
Together with our wide range of round, square and rectangular threaded inserts, they form robust and practical leveling kits.
PRP140
