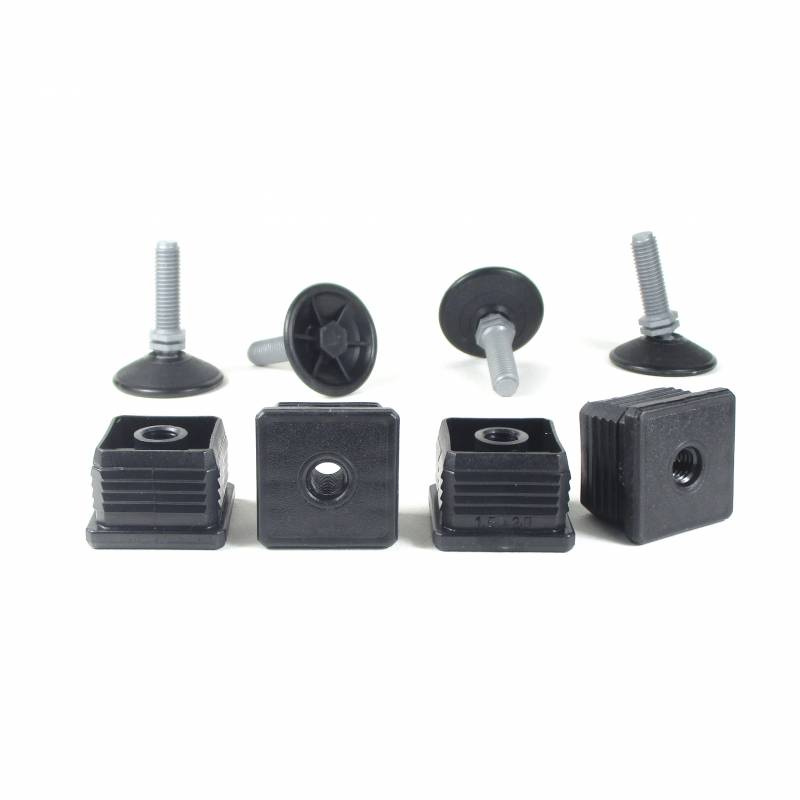

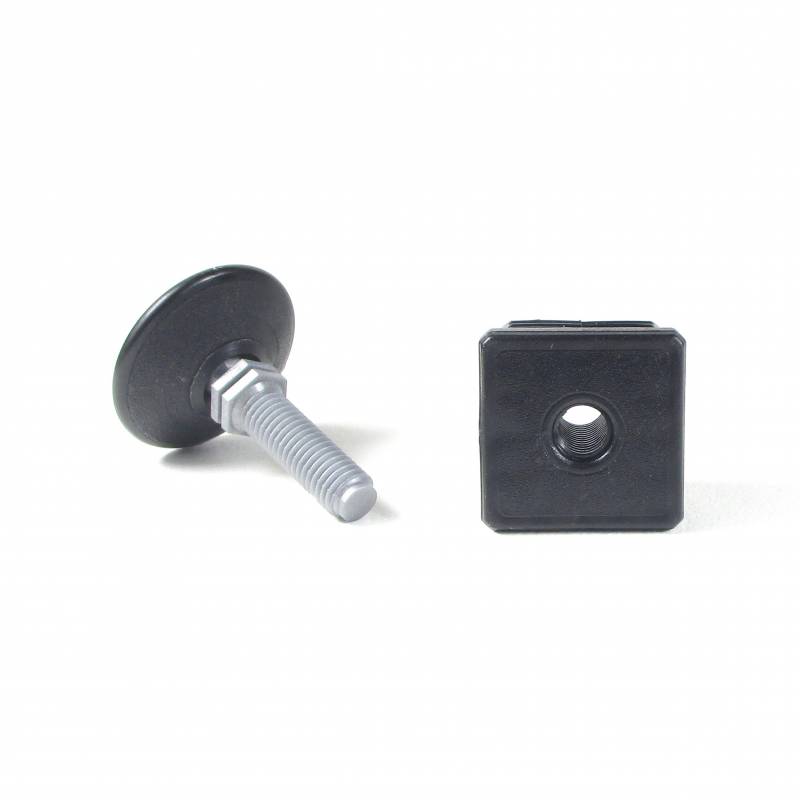

Leveling Kit for 40x40 mm Square Tube with an M10x33 mm Plastic Ball and Socket Foot diameter 40 mm
In stock
Volume discounts
| Quantity | Price (VAT excluded) |
You Save |
|---|---|---|
| 4 | 5,35 € | At least 8,40 € |
| 20 | 4,55 € | At least 58,00 € |
| 100 | 3,90 € | At least 355,00 € |
And ideal kit to adjust, level and even out wobbles caused by uneven surfaces.
It includes a threaded end cap for tubes with OUTER DIMENSIONS 40 x 40 mm and a wall thickness of 1.6 and 2.0 mm.

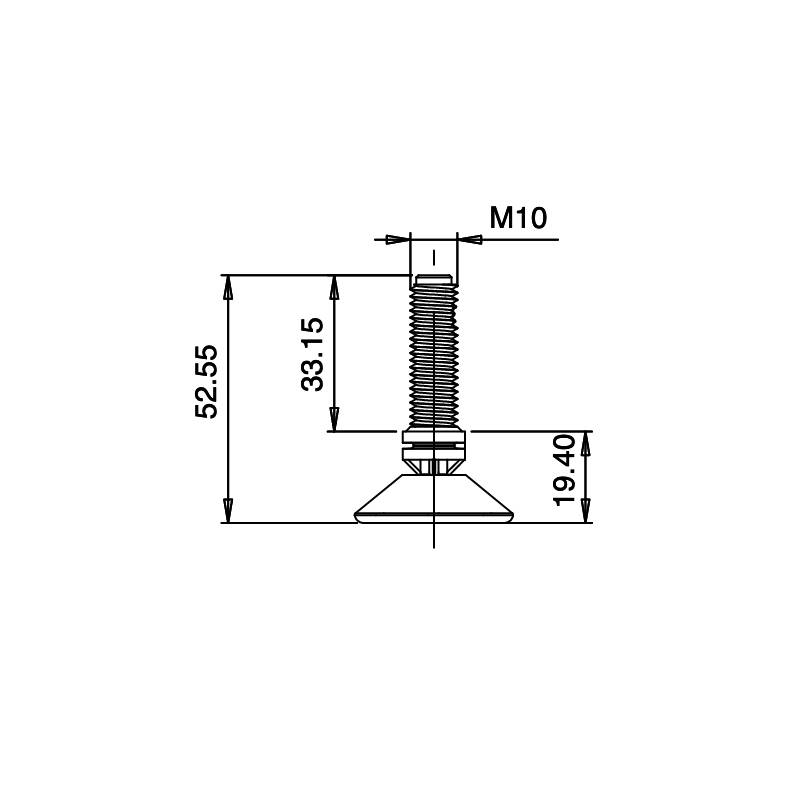

The 33 mm long plastic M10 threaded machine foot (length of stem with threading) has a 40 mm diameter plastic base (plate).
Each kit supports a maximum static load of 150 kg / foot for all uses and applications.
The threaded part of the foot is made of non-rusting, corrosion proof polyamide plastic that resists chemical substances and marine environments.
Industrial quality, European manufacturing.
Leveling Kit for 40x40 mm Square Tube with an M10x33 mm Plastic Ball and Socket Foot diameter 40 mm by the online hardware leader !
For the purchase of Leveling Kit for 40x40 mm Square Tube with an M10x33 mm Plastic Ball and Socket Foot diameter 40 mm trust ajile.biz, screws & hardware online leader in Europe ! Thousands of references are present in our catalogue so that you can buy screws, nuts, bits, bolts, hooks and much more !
Leveling Kit for 40x40 mm Square Tube with an M10x33 mm Plastic Ball and Socket Foot diameter 40 mm
APPLICATION : the plug fits easily into the tube, you can use a wooden mallet if necessary. It is possible to add a counter nut to firmly secure the adjusted setting.
USE : the plastic base slides on surfaces and allows for an easy and convenient mobility of the supported object.
The swivel base ensures an optimal adaptability to irregular ground surfaces.
The Ajile Adjustable Kit for 40x40 mm Square Tubes KCP140 is part of Ajile's wide range of adjustable feet : Cylindrical Feet, Hex Head Feet, Knurled Head Feet, Monobloc Adjustable Feet as well as Felt based Feet with adhesive or insertable base.
The leveling kits are available for mounting on round, square or rectangular tubes.
These components are not only commonly found in industrial applications, but they are also found in vehicles, boats, electrical and electronic equipment, urban furniture etc...
The machine feet and the Ajile control knobs are composed of a plastic body (or base) made from Polypropylene also known as Nylon, and either a threaded plastic or zinc-plated steel stem.
This choice of combination of plastic/metal or completely plastic materials offers varying possibilities of high mechanical strengths as well as excellent resistance to the effects of corrosion from the environment or chemical agents.
KCP140
Data sheet
- Application
- Chair leg covers
End cap for table leg
Protective end caps
Tip for tube - Shape
- Square
- Matter
- Plastic
- Color
- Black
- Use
- To insert
- Dimensions
- 40 x 40 mm
- With thread or tapping?
- Yes
