Round M10 threaded ribbed insert for 50 mm OUTER diam. round tube - BLACK
In stock
Volume discounts
| Quantity | Price (VAT excluded) |
You Save |
|---|---|---|
| 8 | 2,19 € | At least 10,48 € |
| 24 | 1,75 € | At least 42,00 € |
| 100 | 1,40 € | At least 210,00 € |

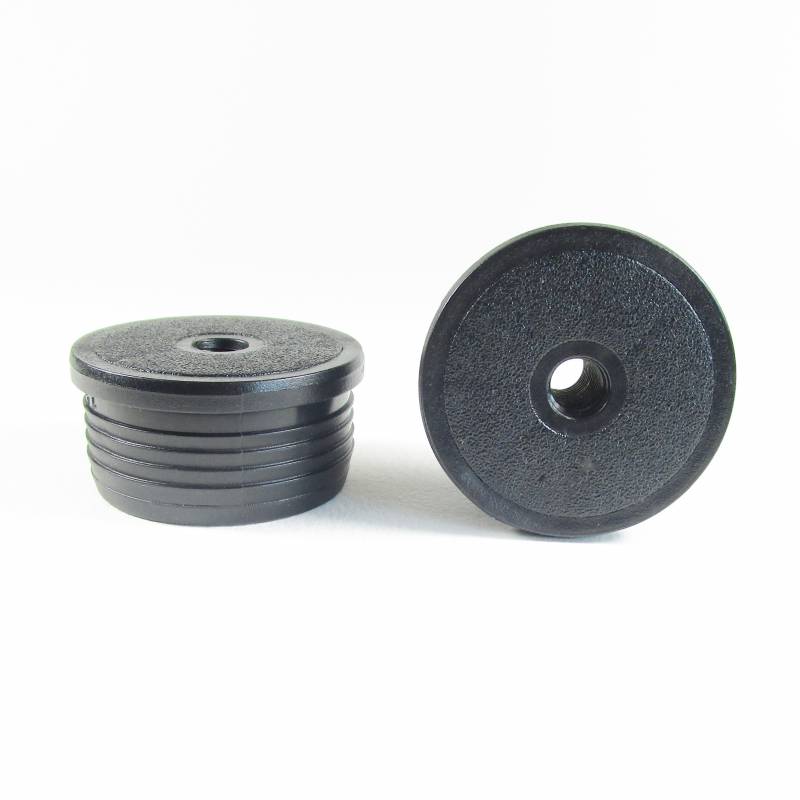

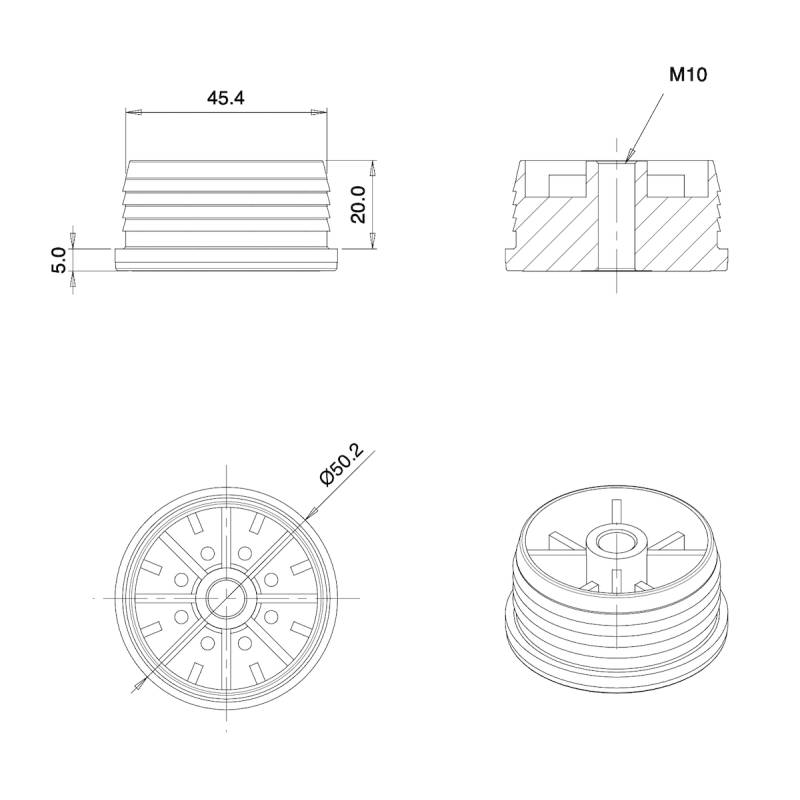

This robust BLACK polyamide (Nylon) threaded end cap fits and 10 mm diameter (M10) threaded adjustable foot onto a round tube.
The OUTSIDE diameter (Ø Ext.) of the tube is 50 mm
The wall thickness is between 1.6 and 2 mm

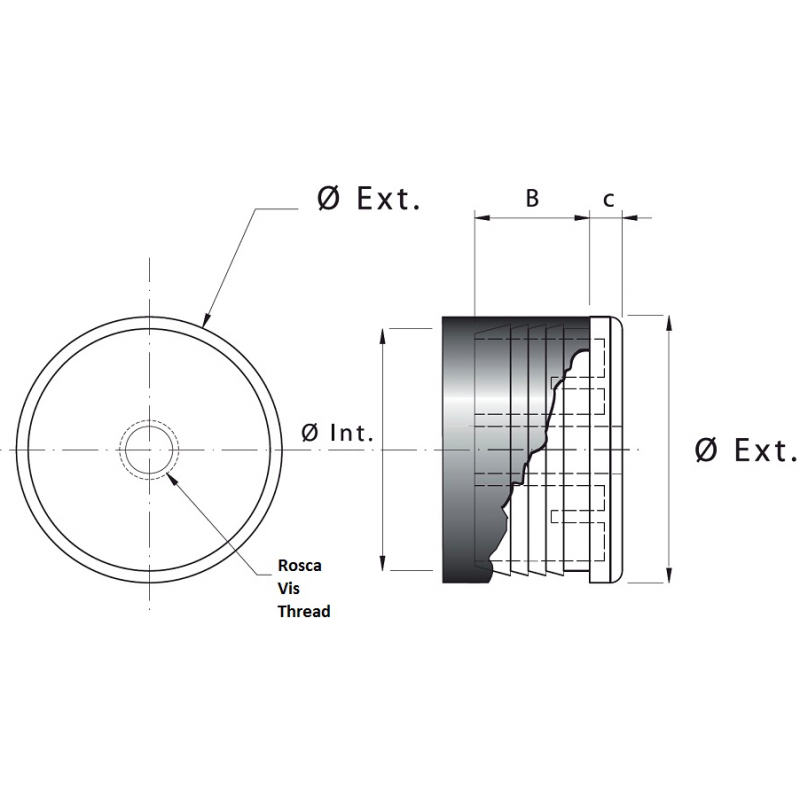

Base thickness : C = 5.5 mm
Length penetrating the tube : B = 20 mm
Recommended AJILE adjustable feet are as follows : use references EMC (monobloc adjustable foot), PFX (threaded cylndrical foot), PFM (knurled levelling foot), PRC (notched adjustable foot) and PRH (hexagonal adjustable foot).
At Ajile you benefit from individual and customised sales for your specific needs, as well as quantitative discounts for a tailor-made price. Shipping is immediate upon receiving the order / payment from our location near Strasbourg.
Round M10 threaded ribbed insert for 50 mm OUTER diam. round tube - BLACK by the online hardware leader !
For the purchase of Round M10 threaded ribbed insert for 50 mm OUTER diam. round tube - BLACK trust ajile.biz, screws & hardware online leader in Europe ! Thousands of references are present in our catalogue so that you can buy screws, nuts, bits, bolts, hooks and much more !
Round M10 threaded ribbed insert for 50 mm OUTER diam. round tube - BLACK

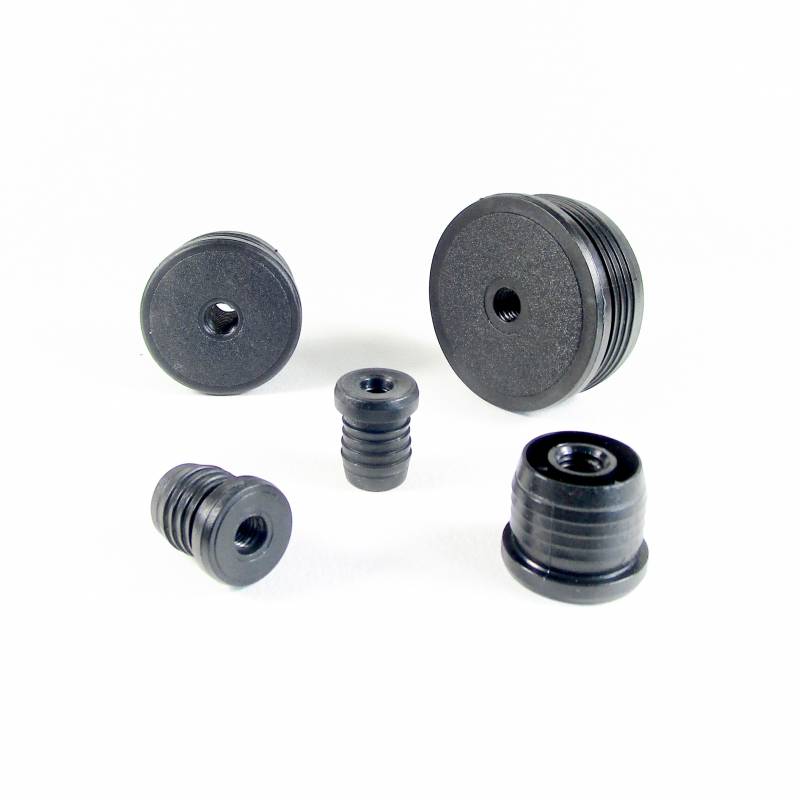

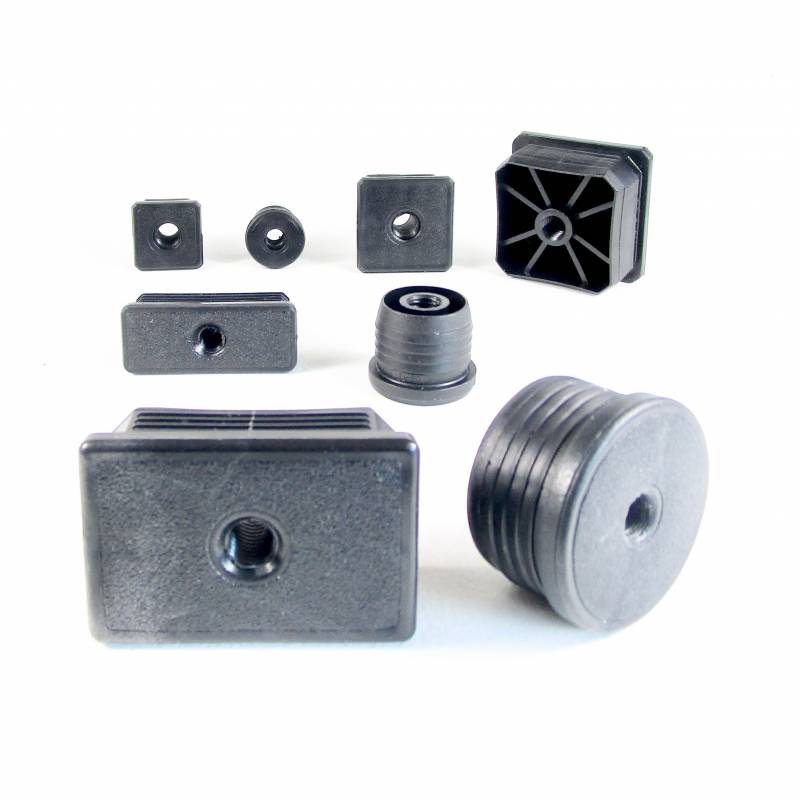

The EFT151 threaded plastic end caps (square or round) are ideal for use with Ajile's wide range of adjustable feet : leveling feet, knurled feet, hexagonal feet and knob feet.
Ajile mechanical feet and knobs are usually made of a plastic body (or base) (Polypropylene or Polyamide (Nylon)) and a threaded rod in galvanised steel.
Owing to this metal/plastic combination, they offer a high mechanical strength and excellent resistance to corrosion and chemical agents.
These components are commonly used for height adjustment and leveling in household equipment and furniture, but also in vehicles, boats, electrical and electronic equipment and many other applications.
EFT151
Data sheet
- Application
- Chair leg covers
End cap for table leg
Protective end caps
Tip for tube - Shape
- Round
- Matter
- Plastic
- Color
- Black
- Use
- To insert
- Dimensions
- ø 50 mm
- With thread or tapping?
- Yes
