    Rectangular M10 threaded ribbed insert for 60 x 30 mm outer dimension rectangular tube - BLACK

    Volume discounts

    QuantityUnit priceYou Save
    81,25 € HT6,00 € HT
    241,00 € HT24,00 € HT
    1000,80 € HT120,00 € HT
    2,00
    HT

    €2.40 TTC

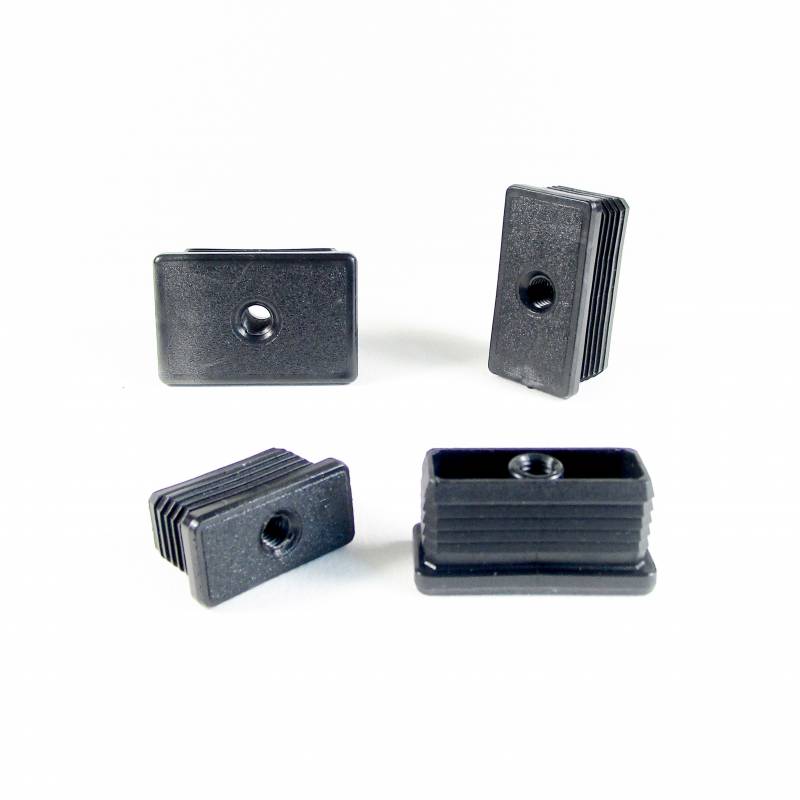

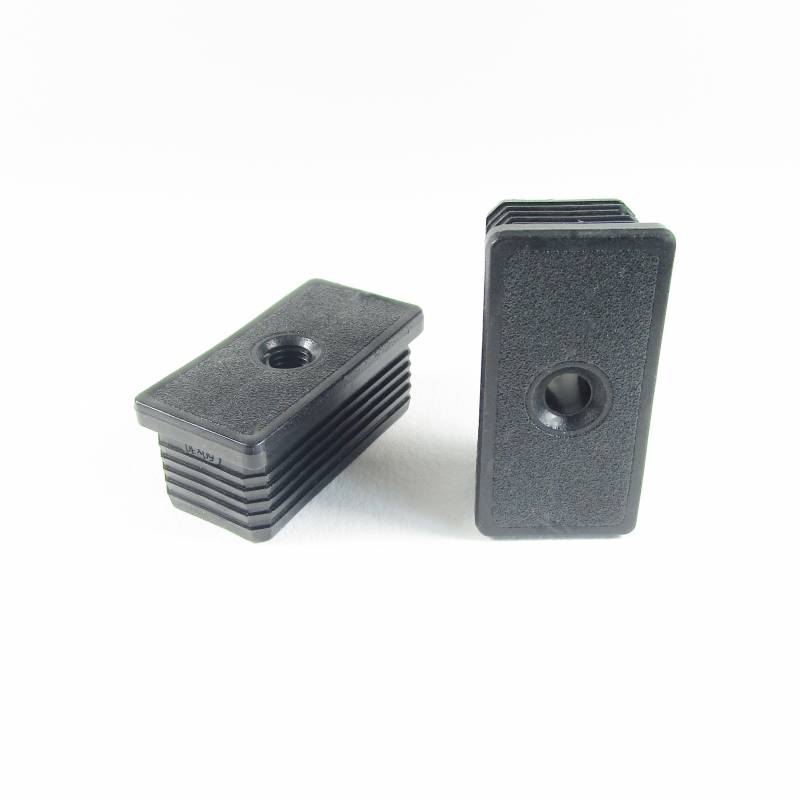

    This robust BLACK polyamide (Nylon) threaded end cap fits and 10 mm diameter (M10) threaded adjustable foot onto a rectangular tube.

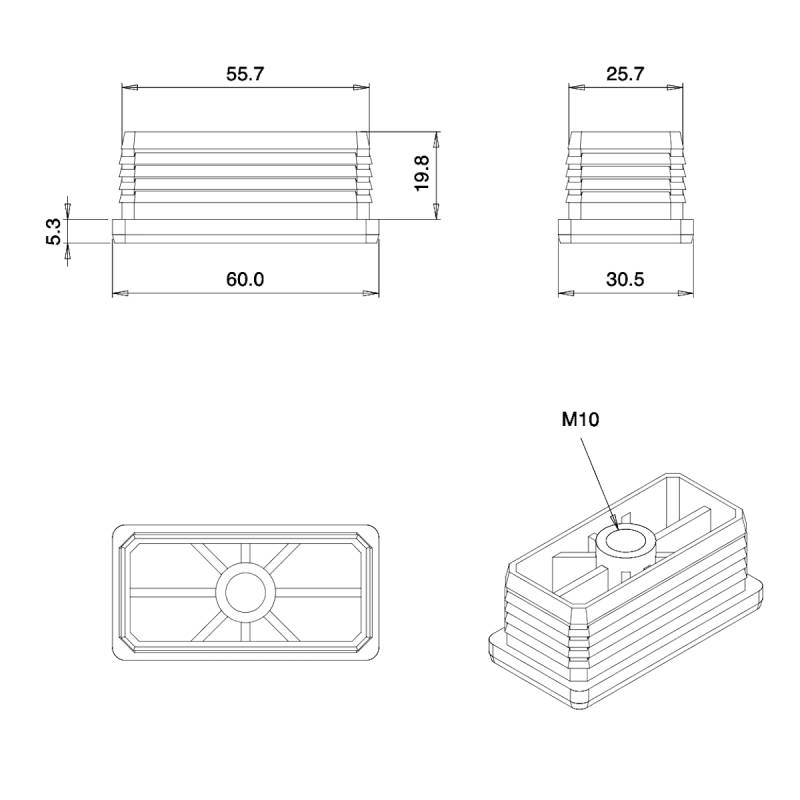

    The OUTSIDE dimension (A x A) of the tube is 60 x 30 mm

    The wall thickness is between 1.5 and 2 mm

    Base thickness : C = 5.5 mm

    Length penetrating the tube : B = 20.5 mm

    Recommended AJILE adjustable feet are as follows : use references EMC (monobloc adjustable foot), PFX (threaded cylndrical foot), PFM (knurled levelling foot), PRC (notched adjustable foot) and PRH (hexagonal adjustable foot).

    At Ajile you benefit from individual and customised sales for your specific needs, as well as quantitative discounts for a tailor-made price. Shipping is immediate upon receiving the order / payment from our location near Strasbourg.

    • Description
    • Product Details
    • Customer reviews

    Rectangular M10 threaded ribbed insert for 60 x 30 mm outer dimension rectangular tube - BLACK

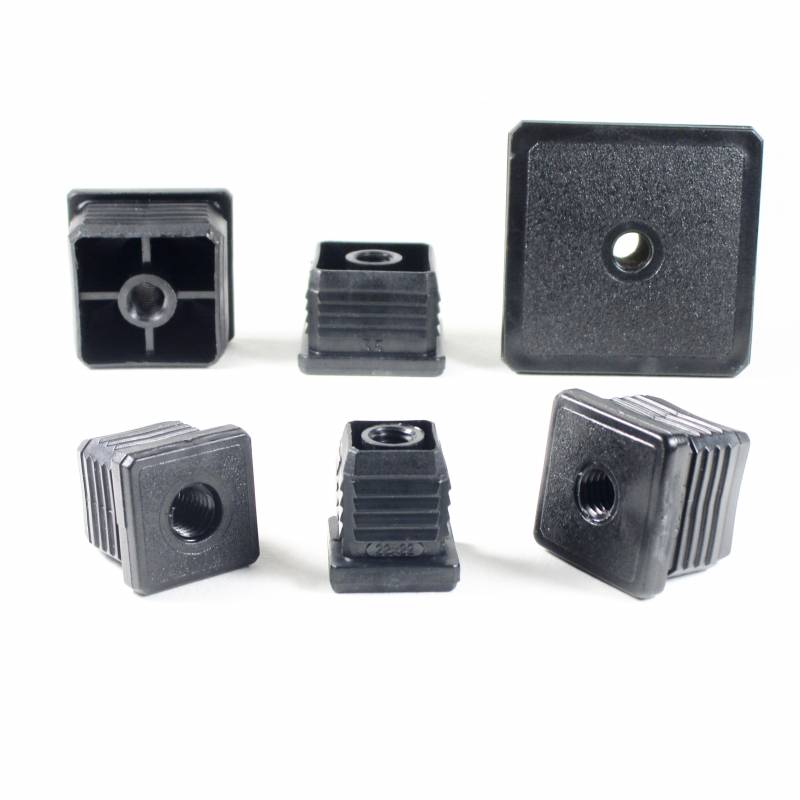

    The EFG163 threaded plastic end caps (square, round or rectangular) are ideal for use with Ajile's wide range of adjustable feet : leveling feet, knurled feet, hexagonal feet and knob feet.

    Ajile mechanical feet and knobs are usually made of a plastic body (or base) (Polypropylene or Polyamide (Nylon)) and a threaded rod in galvanised steel.

    Owing to this metal/plastic combination, they offer a high mechanical strength and excellent resistance to corrosion and chemical agents.

    These components are commonly used for height adjustment and leveling in household equipment and furniture, but also in vehicles, boats, electrical and electronic equipment and many other applications.





    EFG163

    Data sheet

    Application
    Chair leg covers
    End cap for table leg
    Protective end caps
    Tip for tube
    Shape
    Rectangular
    Matter
    Plastic
    Color
    Black
    Use
    To insert
    Dimensions
    60 x 30 mm
    With thread or tapping?
    Yes
