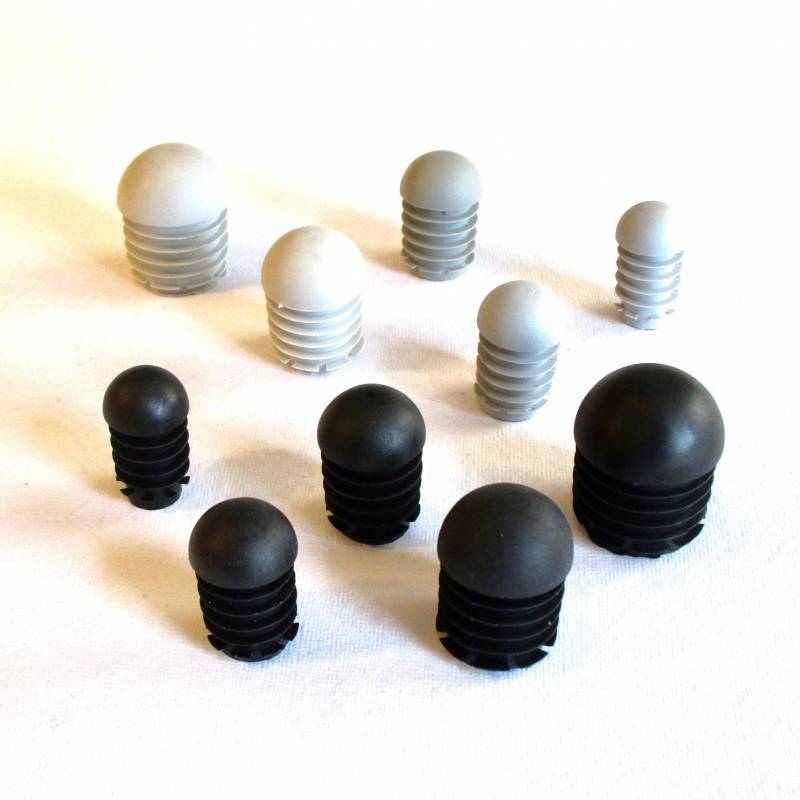

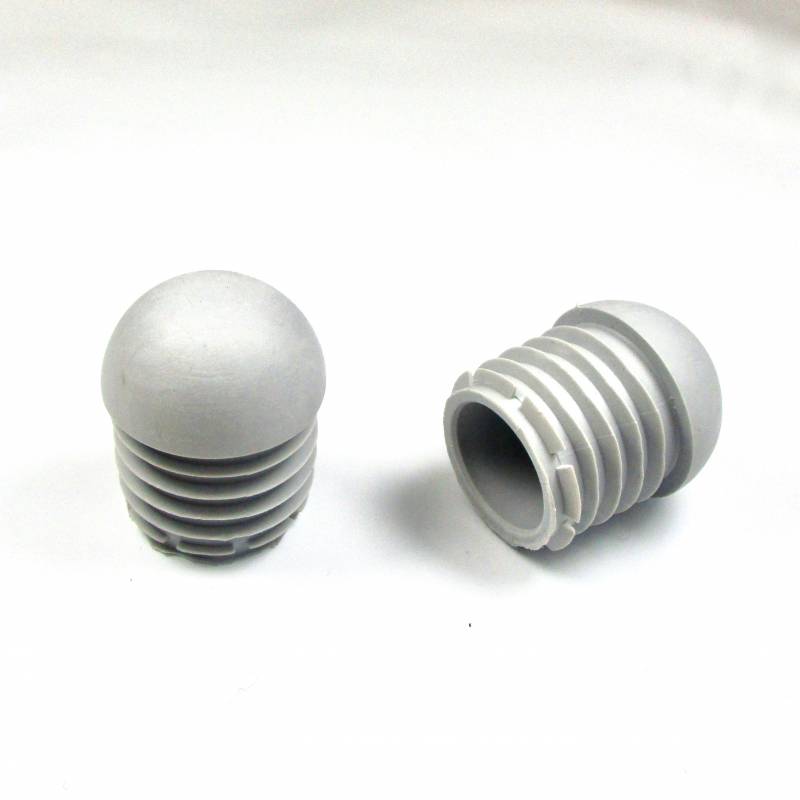

Anti-Skid Round Semispherical Ribbed Insert GREY diameter 30 mm
This domed end cap is designed to be mounted :
- within a blind hole or through passage of diameter 26-28 mm (e.g, for use as a doorstop)
- or at the end of a leg/tube with an OUTSIDE diameter of 30 mm (e.g., support)

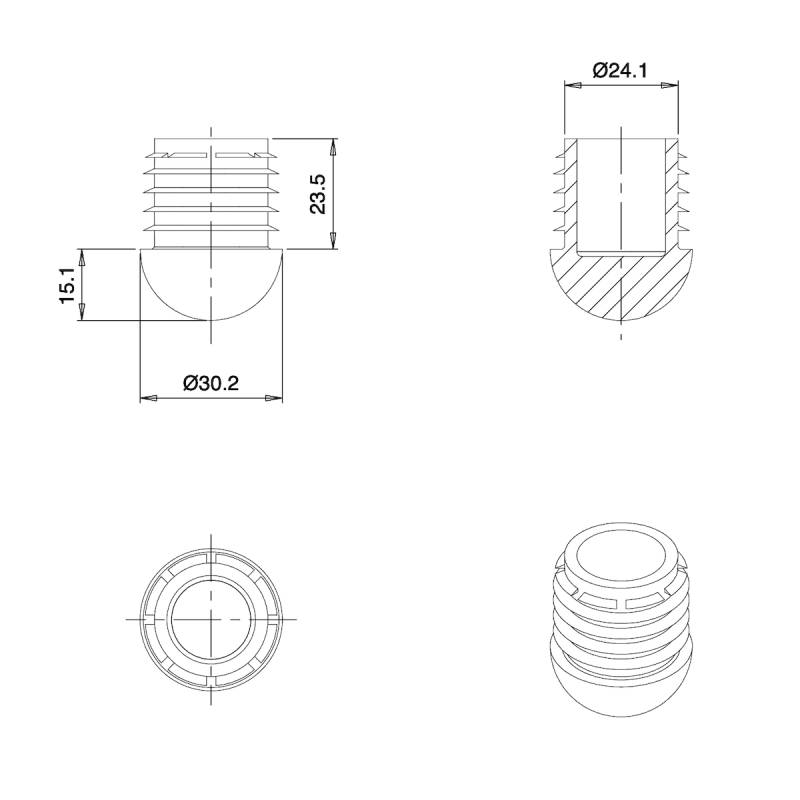

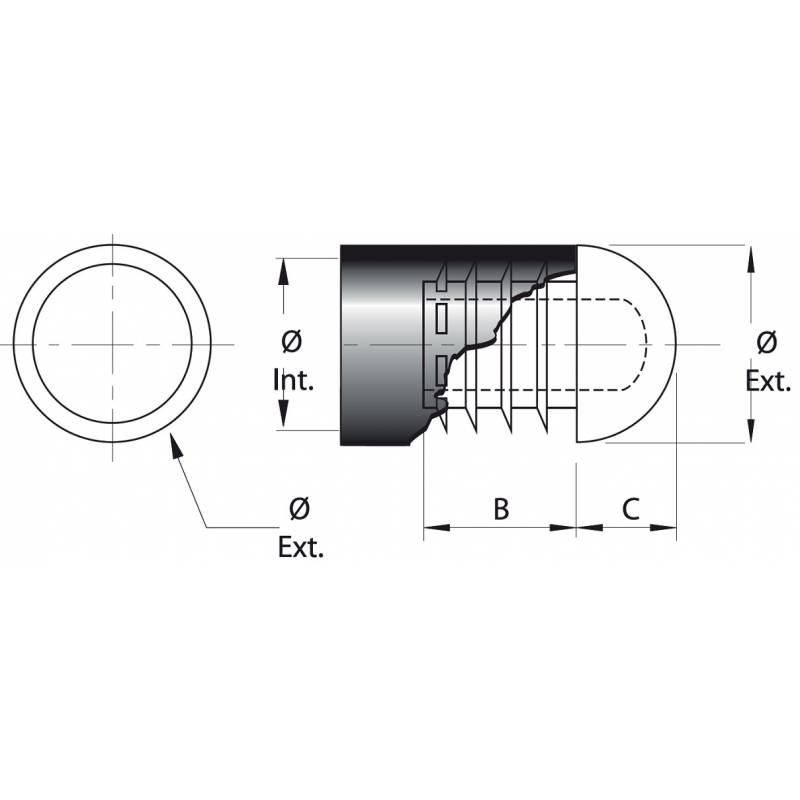

OUTSIDE diameter Ø : 30 mm
INSIDE diameter Ø : 26 - 28 mm
Tube thickness : 1.0 - 2.0 mm
B : Insertion length : 24 mm
C : External height : 15 mm
This soft and silent semi-spherical end cap is suited for furniture, tubular structures and many types of objects and equipment.
It is not recommended for intensive use (e.g., chair legs) where the heavy duty version EBR130 or EHC130 should be preferred.
This half-spherical round ribbed insert is also available in BLACK : EBD130
Anti-Skid Round Semispherical Ribbed Insert GREY diameter 30 mm
APPLICATION : In order to complete insertion no tools are required, a wooden malled can be used if necessary.
MATERIAL : Low density polyethylene (LDPE) is a thermoplastic polymer that is soft to the touch. It is shock absorbing and non-slip.
It is however, less mechanically resistant than high density polyethylene (HDPE).
ADVANTAGES : anti-wear, anti scratch, anti-scrape, this protective tip will ensure silence and protection to your home, school, office, restaurant, waiting room, etc...
EBD330
Data sheet
- Application
- Chair leg covers
End cap for table leg
Protective end caps
Tip for tube - Shape
- Round
- Matter
- Plastic
- Color
- Grey
- Use
- To insert
- Dimensions
- ø 30 mm
- With thread or tapping?
- No
High quality product
Fast shipping
Responsive customer service
