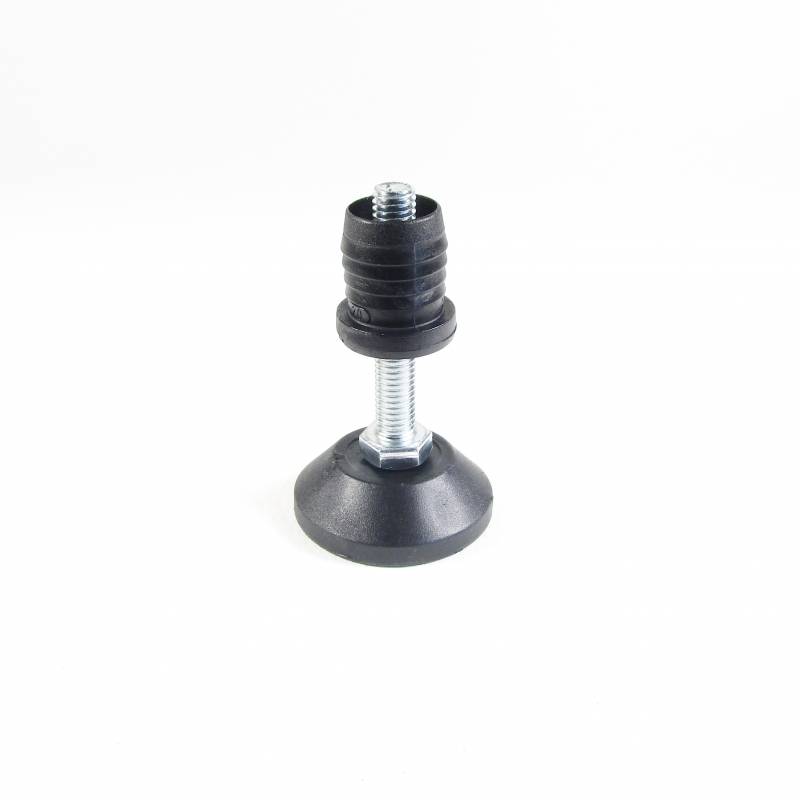

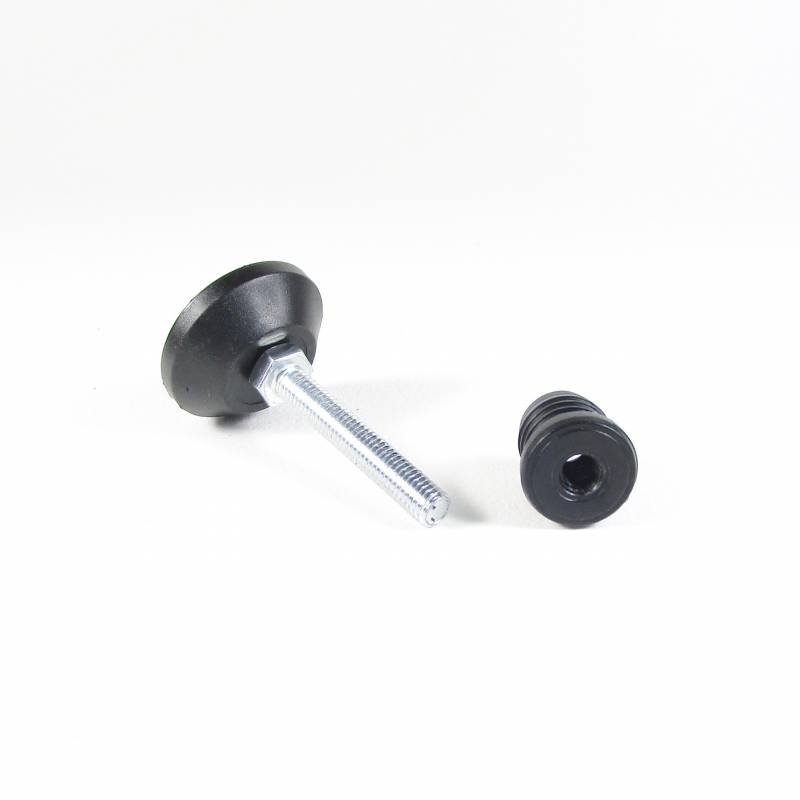

Leveling Kit for 20 mm diam. Round Tube with M8x50 mm Galvanised Steel Adjustable Foot diam. 40 mm
And ideal kit to adjust, level and even out wobbles caused by uneven surfaces.
It includes a threaded end cap for tubes with OUTER DIAMETER 20 mm and a wall thickness of 1.6 and 2.0 mm.
The 50 mm long M8 threaded machine foot (length of stem with threading) has a 40 mm diameter plastic base (plate).
Each kit supports a maximum static load of 150 kg / foot for all uses and applications.
The threaded part of the foot is made of non-rusting, corrosion proof zinc-plated steel that resists chemical substances and marine environments.
Industrial quality, European manufacturing.
Leveling Kit for 20 mm diam. Round Tube with M8x50 mm Galvanised Steel Adjustable Foot diam. 40 mm
APPLICATION : the plug fits easily into the tube, you can use a wooden mallet if necessary. It is possible to add a counter nut to firmly secure the adjusted setting.
USE : the plastic base slides on surfaces and allows for an easy and convenient mobility of the supported object.

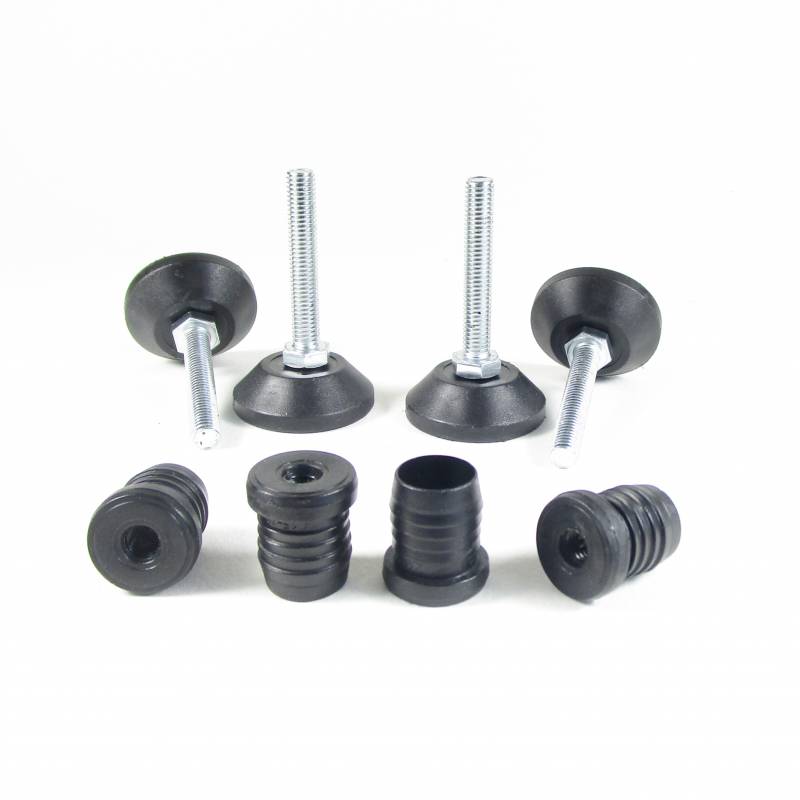

The Ajile Adjustable Kit for 20 mm Round Tubes KRX820 is part of Ajile's wide range of adjustable feet : Cylindrical Feet, Hex Head Feet, Knurled Head Feet, Monobloc Adjustable Feet as well as Felt based Feet with adhesive or insertable base.
The leveling kits are available for mounting on round, square or rectangular tubes.
These components are not only commonly found in industrial applications, but they are also found in vehicles, boats, electrical and electronic equipment, urban furniture etc...
The machine feet and the Ajile control knobs are composed of a plastic body (or base) made from Polypropylene also known as Nylon, and either a threaded plastic or zinc-plated steel stem.
This choice of combination of plastic/metal or completely plastic materials offers varying possibilities of high mechanical strengths as well as excellent resistance to the effects of corrosion from the environment or chemical agents.
KRX820
Data sheet
- Application
- Chair leg covers
End cap for table leg
Protective end caps
Tip for tube - Shape
- Round
- Matter
- Plastic/metal
- Color
- Black
- Use
- To insert
- Dimensions
- ø 20 mm
- With thread or tapping?
- Yes
