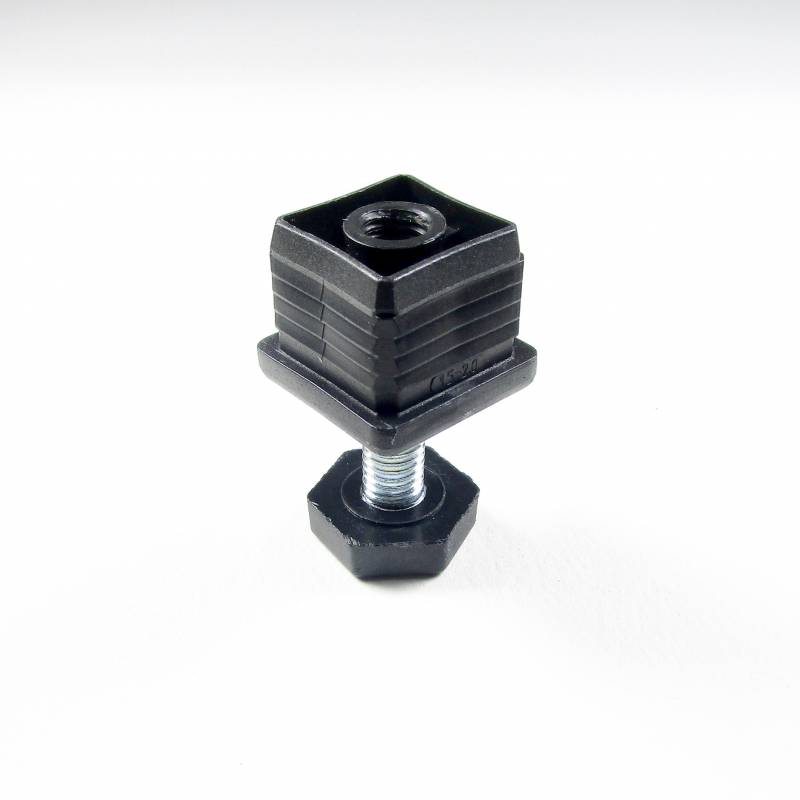

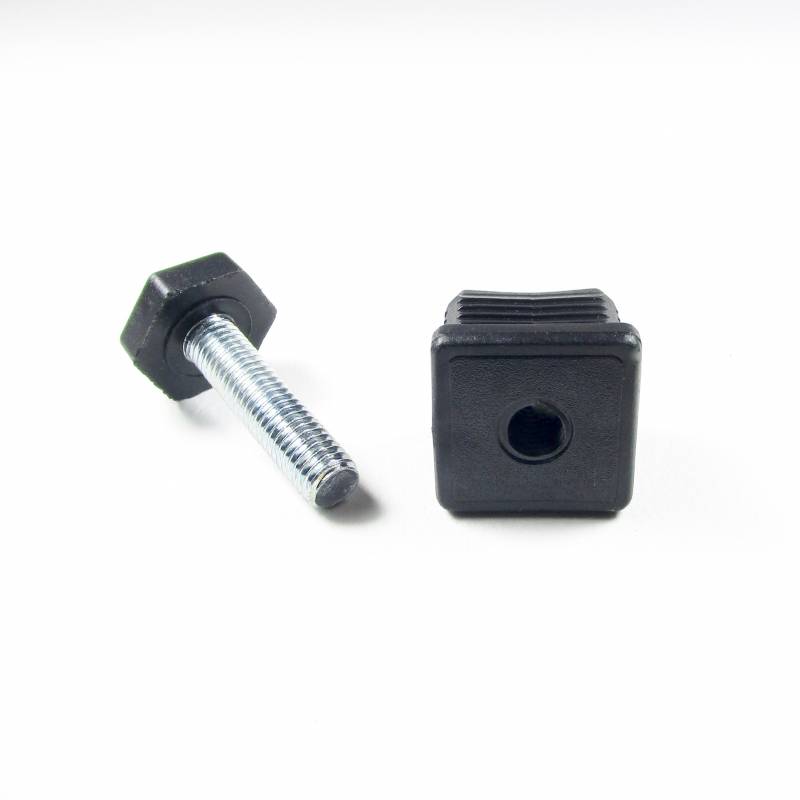

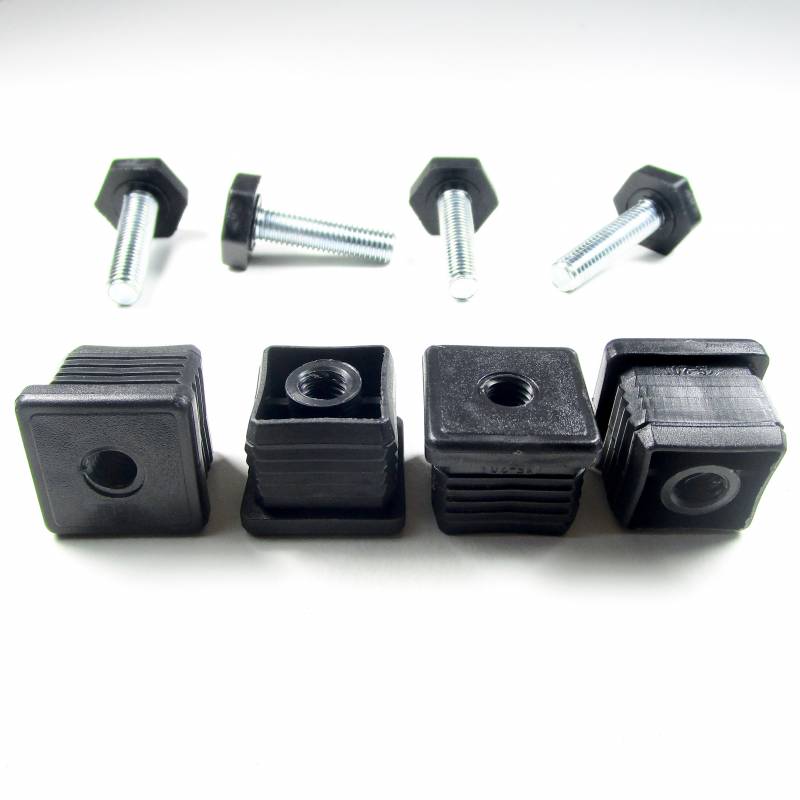

    Leveling Kit for 30x30 mm Square Tube with an M10x40 mm Galvanised Steel 24 mm Hexagonal Foot

    Volume discounts

    QuantityUnit priceYou Save
    43,00 € HT4,60 € HT
    202,55 € HT32,00 € HT
    1002,15 € HT200,00 € HT
    4,15
    HT

    €4.98 TTC

    And ideal kit to adjust, level and even out wobbles caused by uneven surfaces.

    It includes a threaded end cap for tubes with OUTER DIMENSIONS 30 x 30 mm and a wall thickness of 1.6 and 2.0 mm.

    The 40 mm long M10 threaded machine foot (length of stem with threading) has a  24 mm diameter plastic hexagonal base (plate).

    Each kit supports a maximum static load of 150 kg / foot for all uses and applications.

    The threaded part of the foot is made of non-rusting, corrosion proof zinc-plated steel that resists chemical substances and marine environments.

    Industrial quality, European manufacturing.

    • Description
    • Product Details

    Leveling Kit for 30x30 mm Square Tube with an M10x40 mm Galvanised Steel 24 mm Hexagonal Foot

    APPLICATION : the plug fits easily into the tube, you can use a wooden mallet if necessary. It is possible to add a counter nut to firmly secure the adjusted setting.

    USE : the plastic base slides on surfaces and allows for an easy and convenient mobility of the supported object.

    The  Ajile Adjustable Kit for 30x30 mm Square Tubes KCH130 is part of Ajile's wide range of adjustable feet : Cylindrical Feet, Hex Head Feet, Knurled Head Feet, Monobloc Adjustable Feet as well as Felt based Feet with adhesive or insertable base.

    The leveling kits are available for mounting on round, square or rectangular tubes.

    These components are not only commonly found in industrial applications, but they are also found in vehicles, boats, electrical and electronic equipment, urban furniture etc...

    The machine feet and the Ajile control knobs are composed of a plastic body (or base) made from Polypropylene also known as Nylon, and either a threaded plastic or zinc-plated steel stem.

    This choice of combination of plastic/metal or completely plastic materials offers varying possibilities of high mechanical strengths as well as excellent resistance to the effects of corrosion from the environment or chemical agents.



    KCH130

    Data sheet

    Application
    Chair leg covers
    End cap for table leg
    Protective end caps
    Tip for tube
    Shape
    Square
    Matter
    Plastic/metal
    Color
    Black
    Use
    To insert
    Dimensions
    30 x 30 mm
    With thread or tapping?
    Yes
